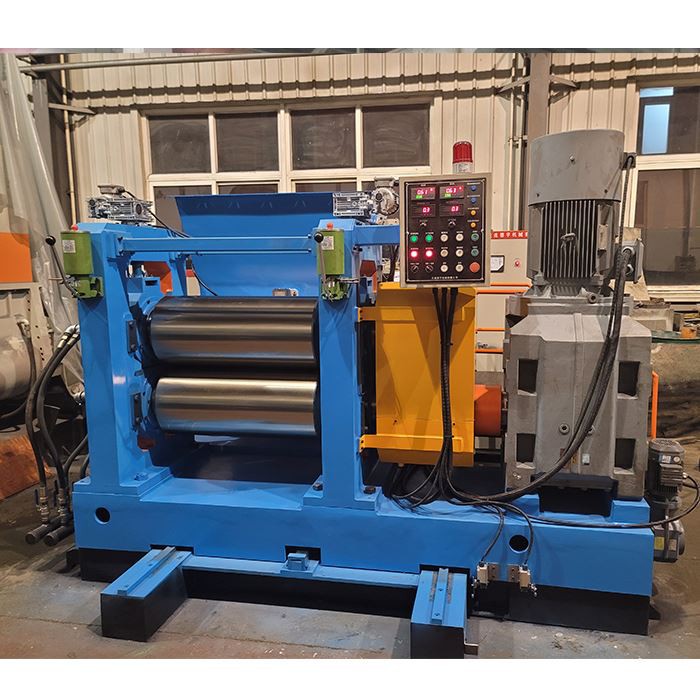

Roj Hmab Extruder Sheet Preforming Tshuab
Rubber extruder sheet preforming tshuab yog cov khoom siv hauv qab ntawm cov roj hmab hauv cov khoom sib xyaw, thiab nws yog cov khoom siv roj hmab extruding tshuab tshwj xeeb rau cov khoom siv sab hauv lossis cov khoom sib xyaw. Nws yog siv rau kev yuam cov ntawv roj hmab extrusion ntawm roj hmab thiab yas, hluavtaws resign, thiab lwm yam khoom uas tsis yog hlau.
1. Lub tshuab no siv lub zog qis, thiab nws muaj cov qauv yooj yim, cov cuab yeej tu tus kheej zoo, lub neej siv tau ntev, siab automation degree, kev ua haujlwm yooj yim, tsis muaj suab nrov, tsis muaj kuab paug ib puag ncig, thaj chaw me me, thiab kev saib xyuas yooj yim, thiab lwm yam.
2. Ob lub hau muaj ib lub taub hau, lub suab sib txawv, thiab qhov sib txawv ntawm qhov tob, conical propulsion. Ob lub screws tig oppositely, thiab sib koom ua ke tag nrho. Ob leeg ntawm cov ntsia hlau tau nruab rau ntawm lub kaum sab xis thiab siv lub taub hau qhib, kom cov ntaub ntawv extruded ntau tiaj tiaj thiab du, cov khoom siv extruding thiab conveying muaj peev xwm zoo heev.
3. Lub tshuab chim muaj qhov qhib loj thiab nws cov hauv qab muaj cov qauv qis. Cov phab ntsa pub mis yog lub tsho-hom welded qauv, thiab cov ntawv extruding rollers yog dhuav yob, qhov kub thiab txias tuaj yeem hloov kho thiab tswj tau los ntawm kev txias nrog dej lossis cua sov nrog cov roj kub, dej kub lossis chav dej, kom ua tau raws li cov txheej txheem ntawm cov khoom sib txawv.
4. Cov ntaub ntawv cov cuab yeej tau nruab rau ntawm lub khib thiab swb ntawm cov khoom noj khoom haus, thiab nws tuaj yeem txav mus rau kab rov tav los ntawm kev siv phau ntawv lossis pneumatic mechanism kom paub txog nws qhov kev sib cais thiab kev sib koom ua ke, yooj yim rau kev ntxuav lossis hloov lub taub hau.
5. Ob leeg ntawm cov khoom noj thiab cov ntaub ntawv siv AC zaus hloov tshuab, hloov mus rau cov txheej txheem yuav tsum tau ua rau cov ntawv roj hmab lossis cov ntawv resin cov kab ntau lawm, paub txog kev hloov pauv ceev ceev.
6. Qhov chaw ua hauj lwm ntawm ntau yam ntawm lub tshuab qhov chaw sib cuag nrog cov ntaub ntawv yog plated nrog nyuaj chrome, yog li lawv yog abrasion resistant thiab corrosion resistant, thiab muaj kev pab lub neej ntev.
7. Lub tshuab hluav taws xob tswj tau siv PLC tswj, yog li nws tuaj yeem paub ob qho tib si tshuab tswj thiab kev sib cuam tshuam nrog cov ntawv ntau lawm kab. Tsis tas li ntawd, lub tshuab no tau nruab nrog ultrasonic qib sensor thiab siab sensor, uas tuaj yeem ntes ncaj qha thiab tswj cov ntsia hlau thiab cov menyuam ceev, sib piv cov ceev.
Qauv | XJY-SZ280x110 | XJY-SZ335x135 | XJY-SZ400x150 | XJY-SZ602x250 | XJY-SZ743x330 |
Ntsia hlau zoo | Qhov sib txawv pitch thiab qhov tob, conical | Qhov sib txawv pitch thiab qhov tob, conical | Qhov sib txawv pitch thiab qhov tob, conical | Qhov sib txawv pitch thiab qhov tob, conical | Qhov sib txawv pitch thiab qhov tob, conical |
Screw ntau (pcs) | 2 | 2 | 2 | 2 | 2 |
Npaj cov ntsia hlau central kab | Nrog lub kaum sab xis | Nrog lub kaum sab xis | Nrog lub kaum sab xis | Nrog lub kaum sab xis | Nrog lub kaum sab xis |
Screw txoj kab uas hla (mm) | φ280xφ110 | φ235xφ135 | φ400xφ150 | φ602xφ250 | φ743xφ330 |
Screw ceev (rpm) | 2.2-22 | 2.2-22 | 2.2-22 | 2.2-22 | 2.2-22 |
Extruding lub cev muaj zog (kw) | 18.5 | 30 | 37 | 90 | 132 |
Cov menyuam loj Dia.xLength (mm) | φ300x420 | φ360x530 | φ360x820 | φ400x800 | φ450x1000 |
Sheeting yob ceev (rpm) | 2.5-20 | 2.5-25 | 2.5-25 | 2.5-25 | 3.2-32 |
Roller nip adjustment range (mm) | 0.2-8 | 0.2-8 | 1-8 | 3-10 | 3-10 |
Daim ntawv qhia kev deb (mm) | 300 | 400 | 500 | 550 | 600(650,700,750) |
Roller sheeting lub cev muaj zog (kw) | 5.5 | 15 | 18.5 | 45 | 55 |
Txoj kev pub mis | Tuag hnyav | Tuag hnyav | Tuag hnyav | Tuag hnyav | Tuag hnyav |
Qhov nruab nrab muaj peev xwm (tons / h) | 0.5-0.8 | 1.5-2 | 3 | 6 | 9 |
Kev siv dej (m3 / h) | ≈8 | ≈15 | ≈20 | ≈30 | ≈30-45 |
Zuag qhia tag nrho qhov ntev (mm) | 2550x2240x1780 | 2800x2450x2200 | 3385x2500x1725 | 4570x4320x2270 | 4850x5300x2560 |
Qhov hnyav tag nrho (tsis suav nrog lub cev muaj zog) (tons) | ≈6.5 | ≈9 | ≈10 | ≈25 | ≈30 |
