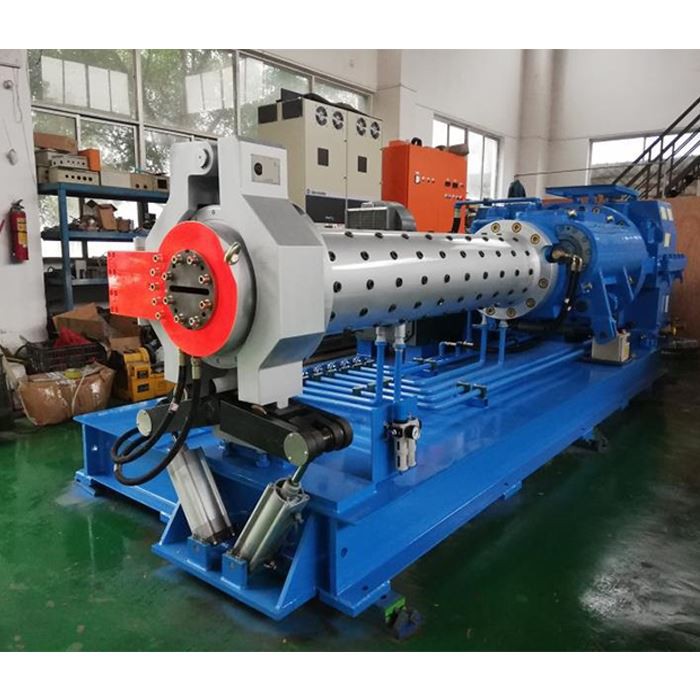

Txias Pub Roj Hmab Extruder
Txias pub roj hmab extruder yog siv rau extruding ib nrab ua tiav cov khoom siv roj hmab, xws li lub raj sab hauv, lub log tsheb, rim band, roj hmab ntawv, thiab lwm yam.
Khoom nta:
1.Yog tias tsis muaj cua sov rau lub tshuab extruder, kev nqis peev thiab cov nqi tsim khoom tuaj yeem txo.
2.Machine optimized ntsia hlau thiab chim tsim kom tau raws li cov neeg siv feem ntau yuav tsum tau ntawm txawv formulations thiab txawv txheej txheem.
3.Qhov txias pub roj hmab extruder tuaj yeem nruab nrog lub taub hau sib txawv rau extrude ntau yam khoom siv roj hmab.
4. Cov khoom siv roj hmab nrog qhov kub thiab txias thiab viscidity tuaj yeem noj tsis tu ncua.
5.Cov screws thiab bushes yog nitrogenation kho kom tau txaus lub zog thiab hnav-tiv taus.
6.Nws muaj cov yam ntxwv ntawm kev txuag hluav taws xob, kev tsim khoom siab thiab zoo plasitcization.
Main Technical Specification ntawm txias pub roj hmab extruder | |||||||
Qauv | XJD-60 | XJD-90 | XJD-120 | XJD-150 | XJD-200 | XJD-250 | |
Ntsia hlau dia. (mm) | 60 | 90 | 120 | 150 | 200 | 250 | |
L/D ratio | 12~16 | 12 | 12; 14 | 14; 16 | 12; 14; 16 | 12; 14; 16 | |
Max. ntsia hlau ceev (r/min) | 80 | 60 | 50 | 43 | 35 | 26; 30 | |
Hopper loj (mm) | -- | 130x100 | 164x130 | 220x130 | 260x180 | 310x230 | |
Tag nrho kab ntau tus pin | 7 | 8 | 8; 10 | 10 | 10; 12 | 10; 12 | |
Pin quanttv ntawm txhua kab | 6 | 6 | 6 | 8 | 10 | 12 | |
Fais fab mov | 380V / 50HZ | 380V / 50HZ | 380V / 50HZ | 380V / 50HZ | 380V / 50HZ | 380V / 50HZ | |
Lub zog (Kw) | 22 | 75-90 | 90-110 | 200-220 | 315-355 | 355-480 | |
Zone ntawm cov dej kub ncig | -- | 4 | 4 | 4 | 4 | 4 | |
Tag nrho lub zog ntawm cov cua kub dej ntws (Kw) | -- | 32 | 48 | 48 | 64 | 64 | |
Muaj peev xwm (kg / h) | 120 | 250~360 | 600 ~900 | 1000~1500 | 1600~2600 | 3000~3500 | |
Zuag qhia tag nrho qhov ntev (mm) | L | -- | 2570 | 3010 | 4000 | 5500 | 6000 |
W | -- | 1335 | 1320 | 1810 | 2100 | 2400 | |
H | -- | 1450 | 1500 | 1620 | 1850 | 1850 | |
Kwv yees li. hnyav (t) | 2.5 | 4.5 | 6 | 7.3 | 12 | 17 | |
⒈Q: Koj puas tuaj yeem tsim cov tshuab tshiab rau peb?
A: Yog lawm, peb muaj cov kws tshaj lij thev naus laus zis uas peb tuaj yeem ua cov tshuab tshiab raws li koj xav tau. Thov qhia rau peb koj xav tau extruding khoom zoo li, qhov loj me thiab lwm yam yuav tsum tau yog tias muaj.
⒉ Q: Peb puas tuaj yeem hais qhia tawm cov khoom lag luam?
A: Yog, yog tias koj muaj cov khoom lag luam, thov qhia rau peb paub ua ntej cov lus hais. Yog tias tsis muaj cov cai tshwj xeeb, peb yuav hais cov tshuab raws li peb cov qauv kev teeb tsa.
⒊ Q: Yuav ua li cas lav lub tshuab zoo?
A: Thaum lub tshuab tsim khoom, peb muaj lub luag haujlwm tswj xyuas lub luag haujlwm rau lub tshuab zoo. Ua ntej lub tshuab xa khoom, peb yuav caw cov neeg siv khoom tuaj rau peb lub Hoobkas rau kev txais tshuab.
⒋Q: Raws li qhov tshwj xeeb ntawm tus mob Coronovirus, peb tsis tuaj yeem mus txawv teb chaws rau kev kuaj tshuab?
A: Nkag siab txog qhov tshwj xeeb, peb tuaj yeem xaiv qhov kev lees paub tshuab video.
⒌Q: Yuav ua li cas kom lub tshuab tsis muaj kev puas tsuaj thaum lub tshuab xa khoom.
A: Peb yuav xaiv txoj kev ntim khoom tsim nyog. Tsis tas li, cov neeg siv khoom tuaj yeem hais qhia cov txheej txheem ntim rau cov tshuab sib txawv.
⒍Q: Koj lub sijhawm lav yog dab tsi?
A: Peb muaj ib xyoo warranty thiab kev pab cuam lub neej ntev. Thaum lub sij hawm warranty lub sij hawm, yog hais tias ib yam dab tsi puas vim raug tsim los yog lwm yam teeb meem zoo, peb yuav muab ib tug mus rau ib tug hloov.
