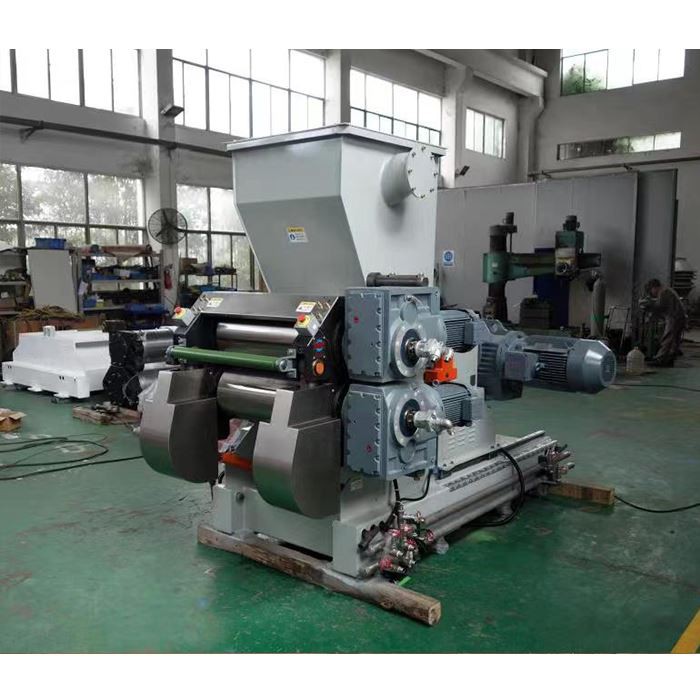

Twin Screw Rubber Extrusion Sheeting Tshuab

Twin ntsia hlau roj hmab extrusion sheeting tshuab yog siv ua ke nrog lub tov khoom, lub tov khoom tuaj yeem tso cov khoom siv roj hmab hauv cov khoom siv thiab nias rau hauv daim ntawv roj hmab txuas ntxiv.

Twin ntsia hlau extruder yog tsim los ntawm ob pawg ntsia hlau conical, chim (suav nrog cov tuav ruaj ruaj), bearing, ceev piv gearbox thiab lubrication system, reducer, tsav lub cev muaj zog, thiab lwm yam.Motor thiab reducer tsav lub ntsiab ntsia hlau, ceev piv iav tsav lub koom haum pab. ntsia hlau rau synchronous nrog kev sib hloov rotation.Nitride ntsia hlau, nyuaj chrome plating ntawm lub thoob lub ntsej muag thiab dej txias / cua sov.

1. Hom ntsia hlau: ob lub khob hliav qab ib lub taub hau nrog qhov sib txawv ntawm qhov sib txawv thiab qhov tob sau cov ntsia hlau (tsis sib xws, qhov tob tsis sib xws, sib sau hom, tag nrho meshing, ib lub taub hau conical ntsia hlau)

Screw qauv: milling ntsia hlau ntug, hardened nto, central drilling txias, rotary sib koom ua ke dej, stainless hlau sab hauv dej txias yeeb nkab.

Ntsia hlau tsav hom: lub cev muaj zog reducer tsav lub ntsiab ntsia hlau, lub ntsiab ntsia hlau thiab cov ntsia hlau auxiliary los ntawm qhov ceev piv iav meshing kis tau tus mob

Lub cev qauv: tag nrho cov qauv casting, sab hauv kab noj hniav, ntsia hlau thiab cov menyuam tshem tawm 5 hli. Dej txias / cua sov chim.Qhov kev sib cuag ntawm lub thoob thiab cov khoom siv roj hmab yog plated nrog nyuaj chromium, thickness ntawm chromium txheej yog ~ {{1 }}.15mm, thiab hardness ntawm chromium txheej yog ntau dua los yog sib npaug rau 730HV10.

Kev sib xyaw roj hmab baffle ntawm lub qhov hluav taws xob roj hmab ntawm lub thoob tuaj yeem zam qhov tsis txaus ntshai ntawm deformation, kev hloov pauv thiab kev puas tsuaj ntawm cov roj hmab baffle.Cov tuav tuav tau txais daim ntawv flared sab nraud, uas yog qhov zoo los txhim kho qhov zoo ntawm cov yeeb yaj kiab ntug thiab txo lub zog. noj.

2. Ob-roller ntsiav tshuaj nias ntaus ntawv: nws yog tsim los ntawm sab sauv thiab qis rollers, bearings thiab bearing seats, hydraulic qhib thiab kaw, xauv thiab cov menyuam nyob deb kev hloov kho, thiab lwm yam.

Muab ob npaug rau yob calender, cov menyuam ntawm cov xovxwm tuaj yeem qhib hydraulically: ~ 115mm, yooj yim rau extruder tu thiab tu.Cov menyuam hauv qab yog tsau rau pem hauv ntej kawg ntawm lub extruder chim los ntawm lub rooj zaum bearing, thiab cov menyuam bearing lub rooj zaum sab sauv. pob khawm ntsia nyob rau hauv pem hauv ntej kawg ntawm lub chim raws li lub ntsiab lus tig, thiab qhib thiab kaw nyob rau hauv qhov kev txiav txim ntawm cov roj lub tog raj kheej rau xauv thiab nias rau zaj duab xis.Thiab los ntawm kev teeb tsa ntawm hydraulic ntaus ntawv, cov menyuam yuav qhib kom ua tiav hauv online. kev hloov ntawm cov menyuam nrug.

Cov menyuam qhov kev ncua deb ntawm cov cuab yeej hloov kho: Cov menyuam hauv qab yog tsau, cov menyuam sab sauv qhib lossis kaw los ntawm kev sib hloov hydraulic ntawm lub rooj zaum pob khawm, thiab sab laug thiab sab xis hydraulic kheej kheej txuas. Cov ntsiav tshuaj xovxwm cov menyuam ua haujlwm pitch clearance: Min.4.0mm. Qhov siab tshaj plaws nqa qhov siab ntawm cov menyuam: ~ 115mm, uas tuaj yeem paub txog kev ua haujlwm ntawm lub taub hau degumming thiab tshuaj xyuas. Txoj haujlwm ua haujlwm ntawm cov ntsiav tshuaj xovxwm yog nruab nrog nceb taub hau thaum muaj xwm ceev nres hloov, phau ntawv rov pib dua, txhawm rau ua kom muaj kev nyab xeeb.

3. Hluav taws xob tswj qhov system: Nws yog tsim los ntawm zaus hloov txee, lub thawv ua haujlwm, kev sib txuas sab hauv thiab sab hauv, nrog rau kev pib, nres, ceev tswj, kev hloov ntawm cov txheej txheem tsis, logic tswj thiab kev tiv thaiv, kev ruaj ntseg tswb tiv thaiv, kev sib txuas lus nrog tov khoom , auxiliary tshuab, zaj duab xis txias ntaus ntawv, linkage ceev tswj thiab hais txog.

4. Nruab nrog lub tswb ua txhaum cai thiab kev ruaj ntseg nres ntaus ntawv

Kev tiv thaiv: dhau tam sim no (ntev) / dhau tam sim no (inversely proportional to time).

Velocity feedback fault.

Motor overheat - ntsuas kub thiab tswb.

Zero speed detection, nres logic thaiv kev tiv thaiv, kev tiv thaiv thaum muaj xwm ceev, reducer lubrication system overtemperature, overpressure, ntws thiab tswb tswj extruder, phaj xovxwm tshuab tshuab kiv cua tswj thiab kev tiv thaiv.

5. Interface thiab kev sib txuas lus muaj nuj nqi

Paub txog kev sib cuag nrog lub tov khoom, tau txais lub teeb liab tawm ntawm lub tov khoom thiab hloov lub teeb liab ntawm kev tso cai / tsis kam noj.

Txhawm rau kom paub txog kev sib cuag nrog lub tshuab pabcuam sab saud, cov khoom siv lub xeev tsis raug xa mus rau lub tshuab pabcuam sab saud.

Paub txog kev sib txuas nrog zaj duab xis txias, suav nrog kev sib txuas ceev, pib, nres.

1. Tus neeg muag khoom tau lees tias cov khoom cog lus yog ib qho tshiab ua tiav cov khoom siv nrog cov khoom zoo, ua raws li lub teb chaws thiab kev lag luam zoo thiab cov qauv kev lag luam thiab cov kev qhia tshwj xeeb, nrog rau qhov zoo, cov lus qhia, cov ntaub ntawv kev ua haujlwm thiab cov kev xav tau ntawm kev ua haujlwm tau teev tseg hauv cov ntawv txuas ntxiv koom nrog. daim ntawv cog lus, thiab tsim nyog rau kev nyab xeeb thiab siv tau ntev ntev.

2. Lub Sijhawm Warranty: Tus neeg muag khoom yuav tsum teb raws sijhawm raws li kev saib xyuas zoo ntawm tus neeg xav tau, thiab thaum lub sijhawm lav, tus neeg muag khoom yuav tsum tau saib xyuas dawb ntawm qhov tsis raug tshwm sim los ntawm cov teeb meem zoo ntawm cov khoom siv.
